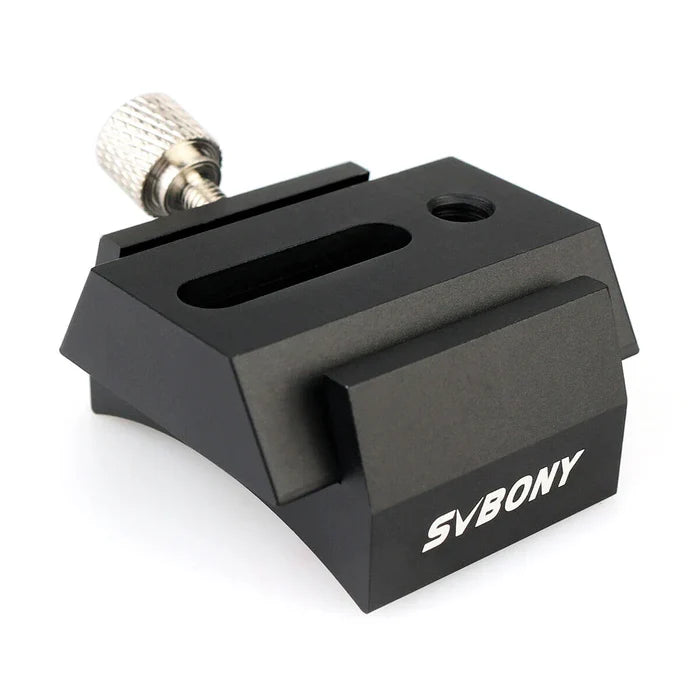

SVBONY Metal Dovetail Base and Mounting Plate Set for Finder Scopes (F9176A)
SVBONY Metal Dovetail Base and Mounting Plate Set for Finder Scopes (F9176A)
✅ Made In USA
✅ Quick Delivery
✅ Cruelty Free
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
SVBONY Metal Dovetail Base and Mounting Plate Set for Finder Scopes (F9176A)
SVBONY Metal Dovetail Base and Mounting Plate Setfor Finder Scopes
Compliable with finder scope;reflex sight bracket on telescopes;great for adding a second or third aiming device to your telescope. Dovetail base fit for most bracket designs from Celestron;Orion;Sky-watcher;Vixen etc; compliable with finder scope;laser Pointer bracket on telescopes.
SVBONY fully metal dovetail bracket base and dovetail mounting plate for finderscope. It can fit and protect the tube very well. All metal finderscope bracket base for your optical finderscope that comes with the standard quick release dovetail board. It is cambered on the bottom of base;so it can fit and protect the tube very well.
Suitable for SV48 and SV48P, not applicable for SV503 series telescope.

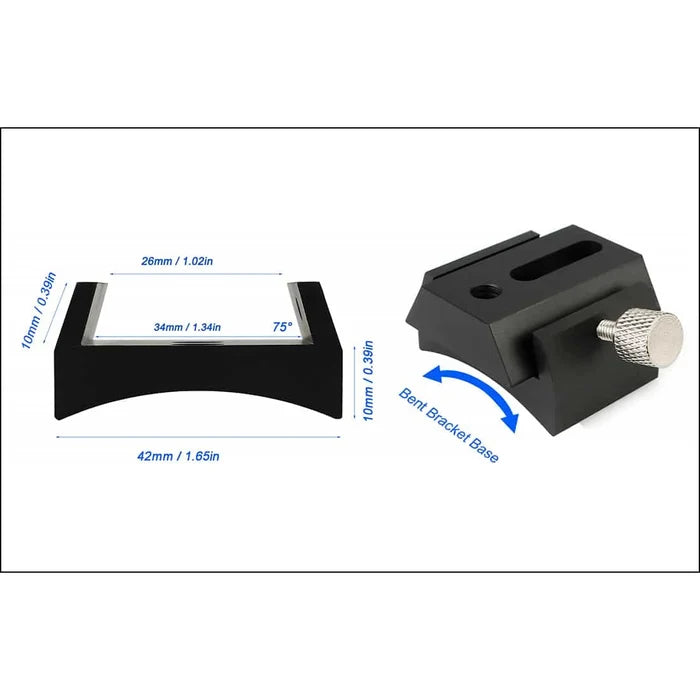

Technical Specification
| Parameter | Value |
|---|---|
| Model | F9176A |
| Base Width | 42 mm |
| Base Length | 29.5 mm |
| Base Width of Internal Trapezoid (Bottom) | 33.4 mm |
| Base Width of Internal Trapezoid (Top) | 28.7 mm |
| Base Height of Inner Part | approx. 9 mm |
| Dovetail Board Length | 42 mm |
| Dovetail Board Width (Bottom) | 32 mm |
| Dovetail Board Width (Top) | 20 mm |
| Dovetail Board Height | 11 mm |
In the Box
Metal Dovetail Base and Mounting Plate Set for Finder Scopes
Manuals & Warranty
Svbony 1-Year Warranty
